This series is eight-channel manual FM multi-channel wireless conference microphone.The product is used UHF band PLL phase-lock technique which is less interference. Frequency is increased by 500KHz.Perfect anti-noise characteristic that any similar system can not be compared. Standard chassis is maked by all-metal material .19 inch 1 U metal panel is configurated with eight-channel receiver respectively.It is assembled LCD screen to show work channel and working frequency.It can understand all the action messages from receiver fully and quickly. Use electronic button control panel to operate. Using aluminum alloy knob which show more high-grade. Mainframe provide balance audio output plug and mix-unbalanced output, in order to adapt all kinds demands of connection.

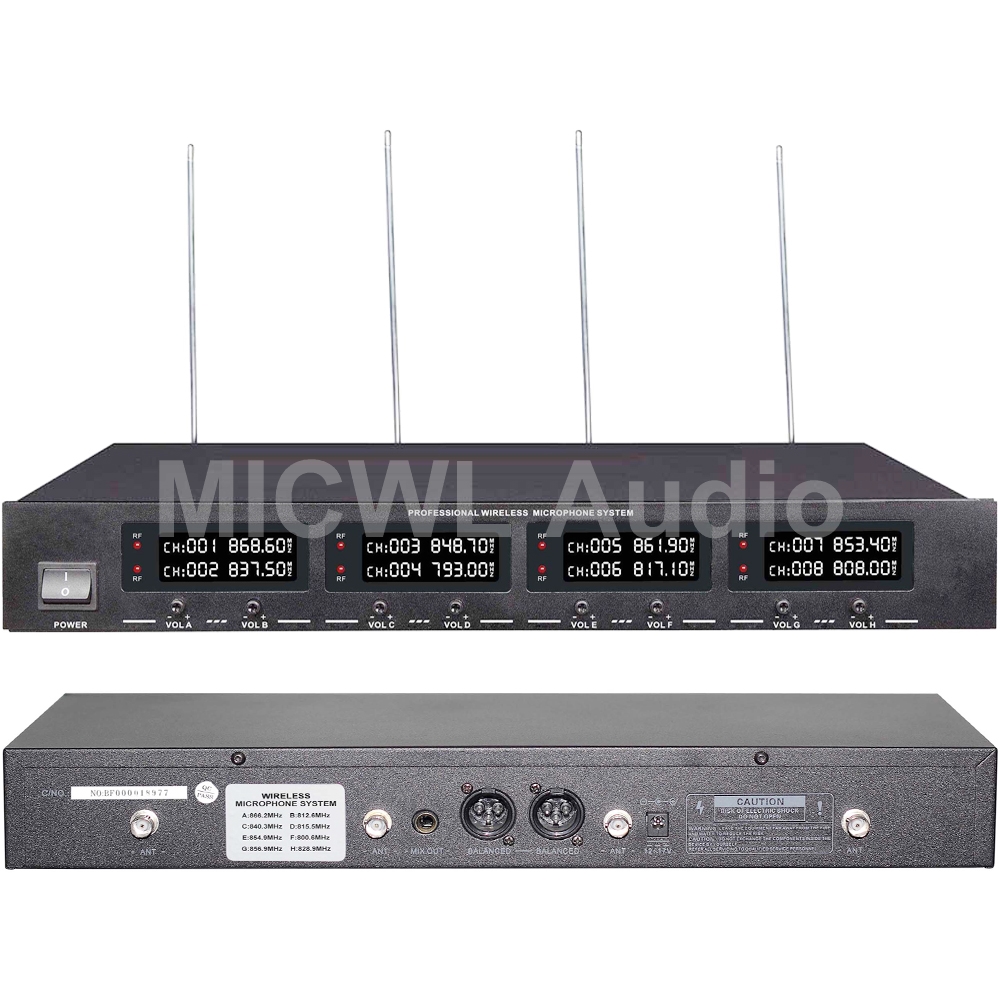

Host Unit description:
(Oscillation: ): (PLL syntheized)
(Carrier Ferquency Range):UHF 800MHz~900MHz
(Frequency Stability):±0.001%
(Max.eviation Range):±50KHz
(Modulation Mode):FM
(S/N Ratio):>105dB
(T.H.D):<0.5%@1KHz
(Sensitivity):1.2/UV @S/N=12dB
(Power Supply):DC:12V~17V
(Audio Output):(Free standing )0~400mV (Mixed style )0~300mV

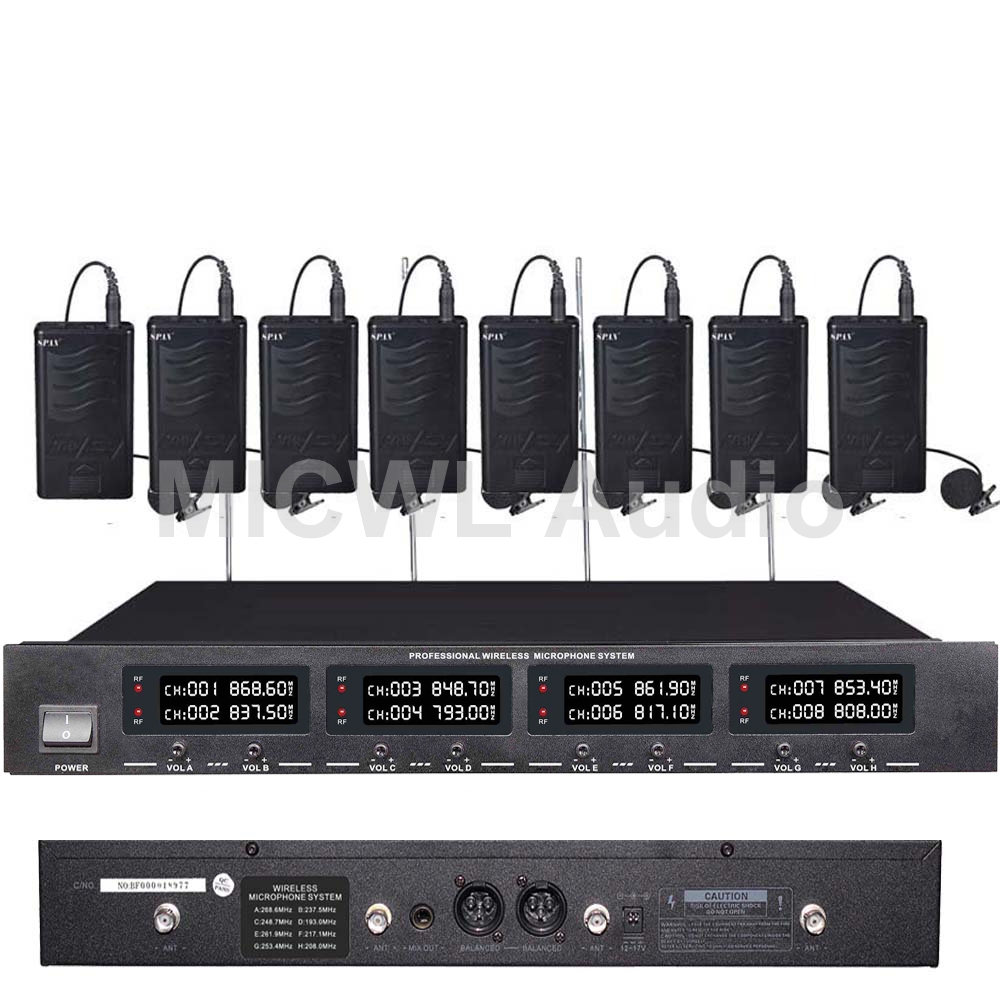

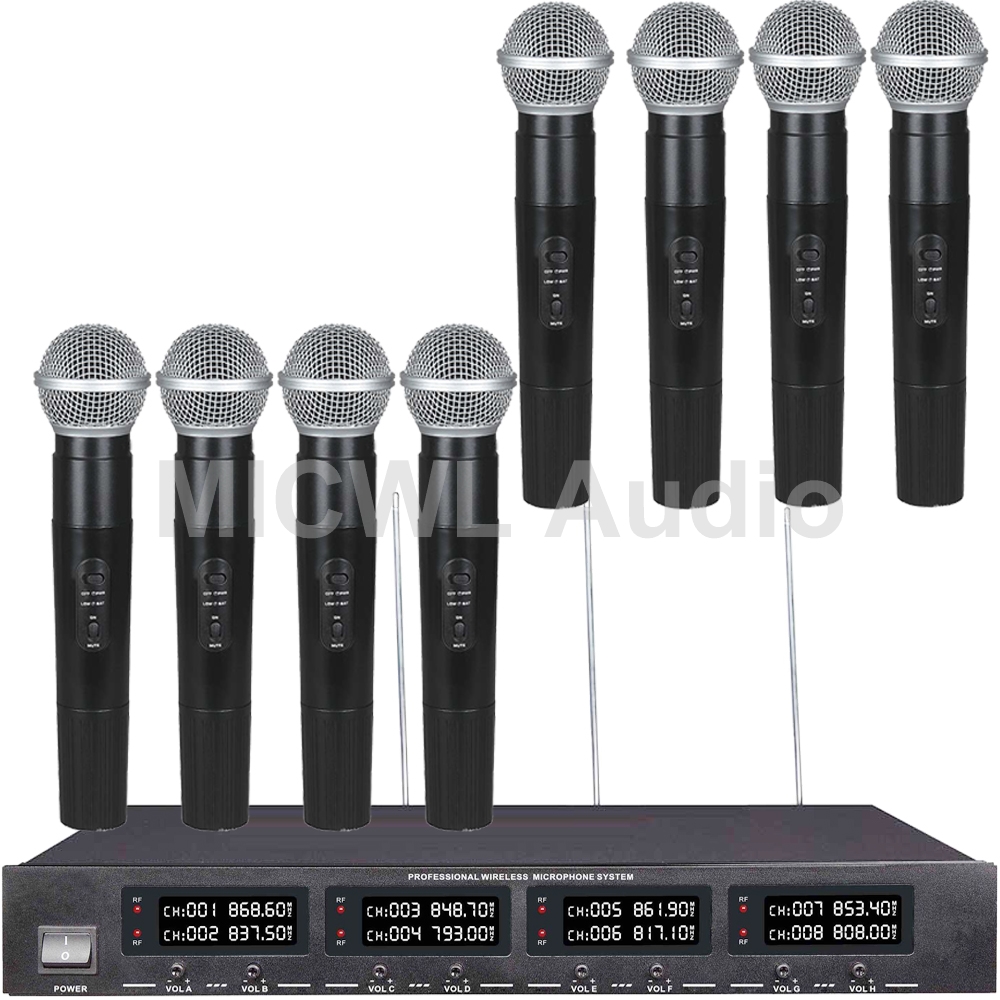

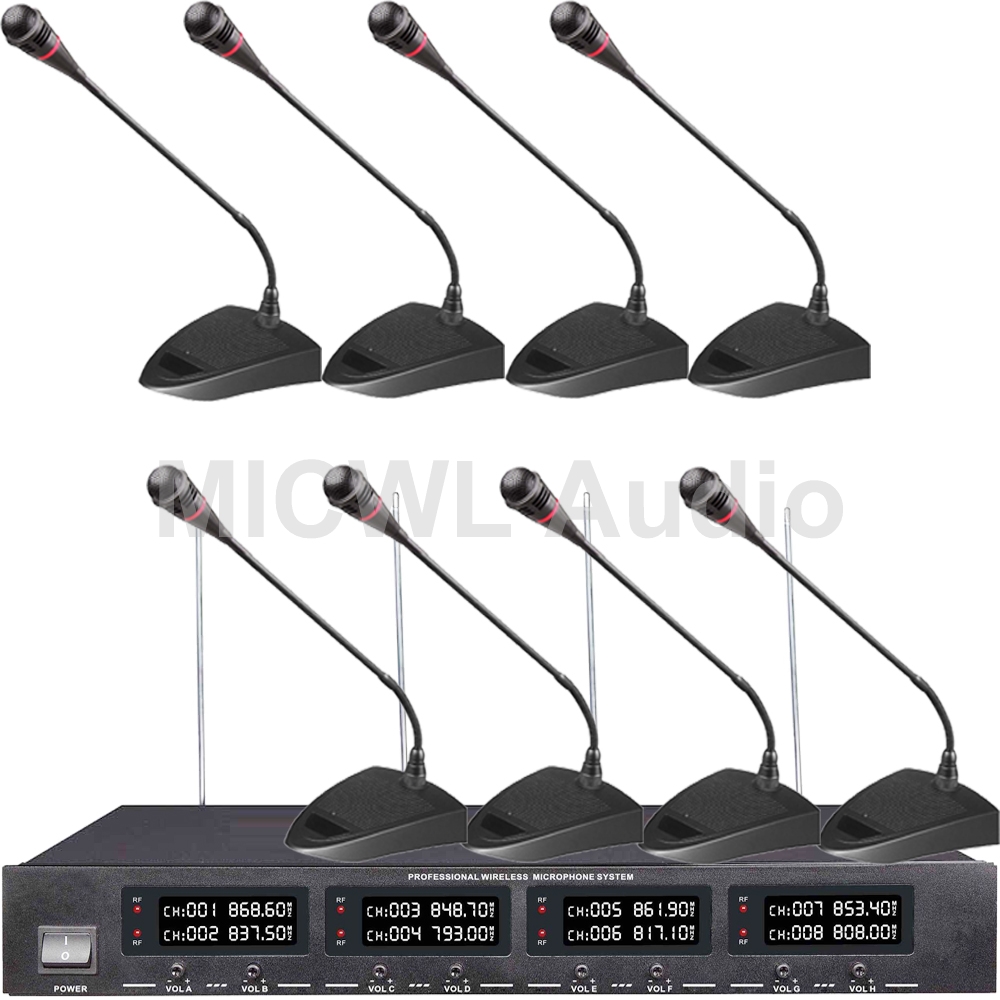

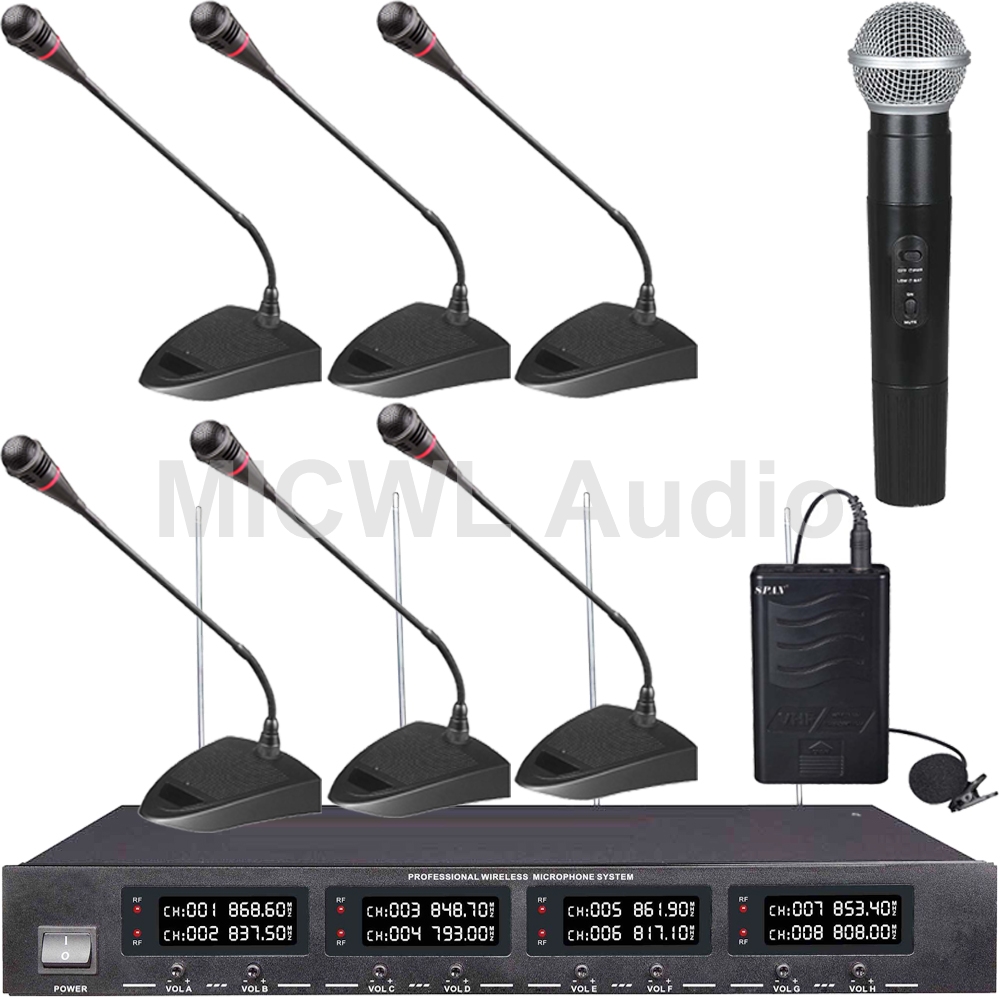

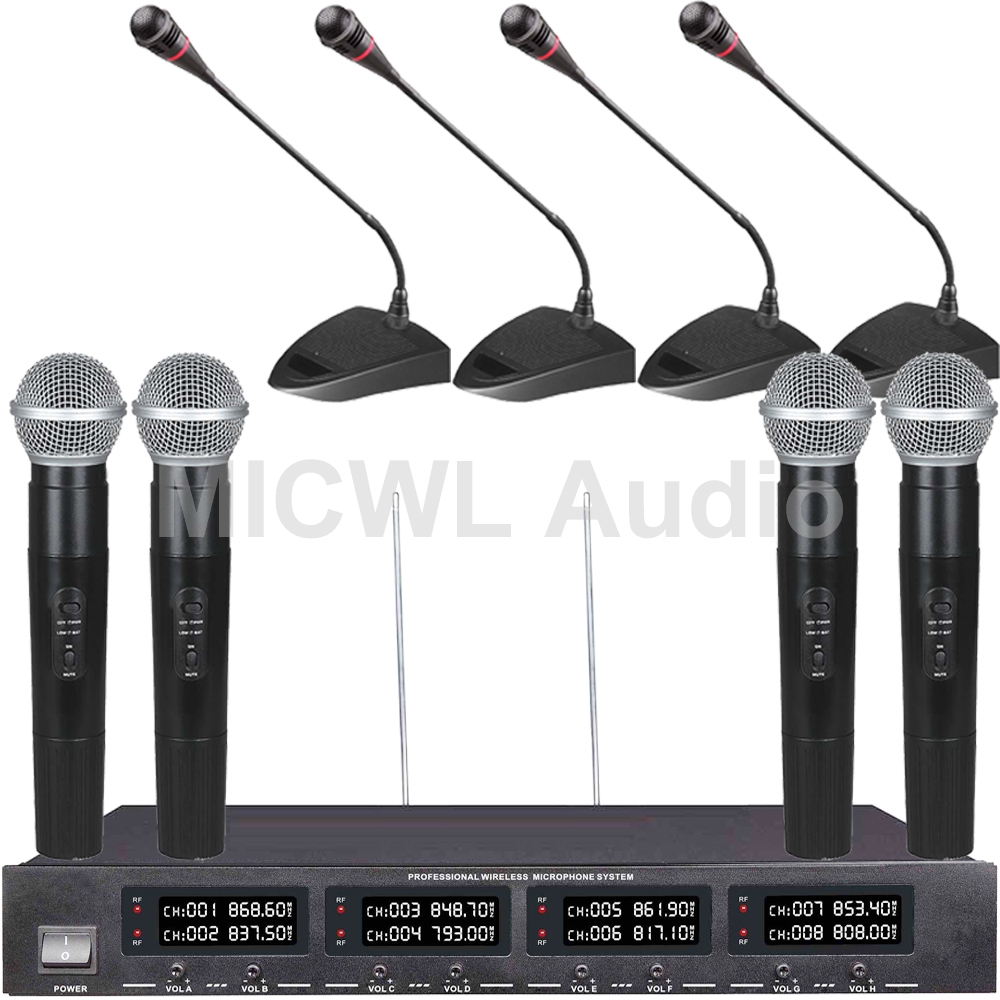

Table Conference / Handheld / Beltpack with Lavalier Transmitter Unit description:
(Power Supply): Table Conferenc DC 3V ( AA*2) . Handheld DC9V , Beltpack DC9V
(Consume an electricity quantity):100mA
(Carry a frequency):UHF 800MHz~900MHz
(Frequency stability):±25KHz
(S/N Ratio):>105dB
(F/N Ratio):>80dB
(Dynamic range):≥100dB
(Type):(capacitance)
(polar psttern):(One direction)
(Frequency Resonse):40Hz~20KHz
(Sensitivity):-47±3dB@1KHz
