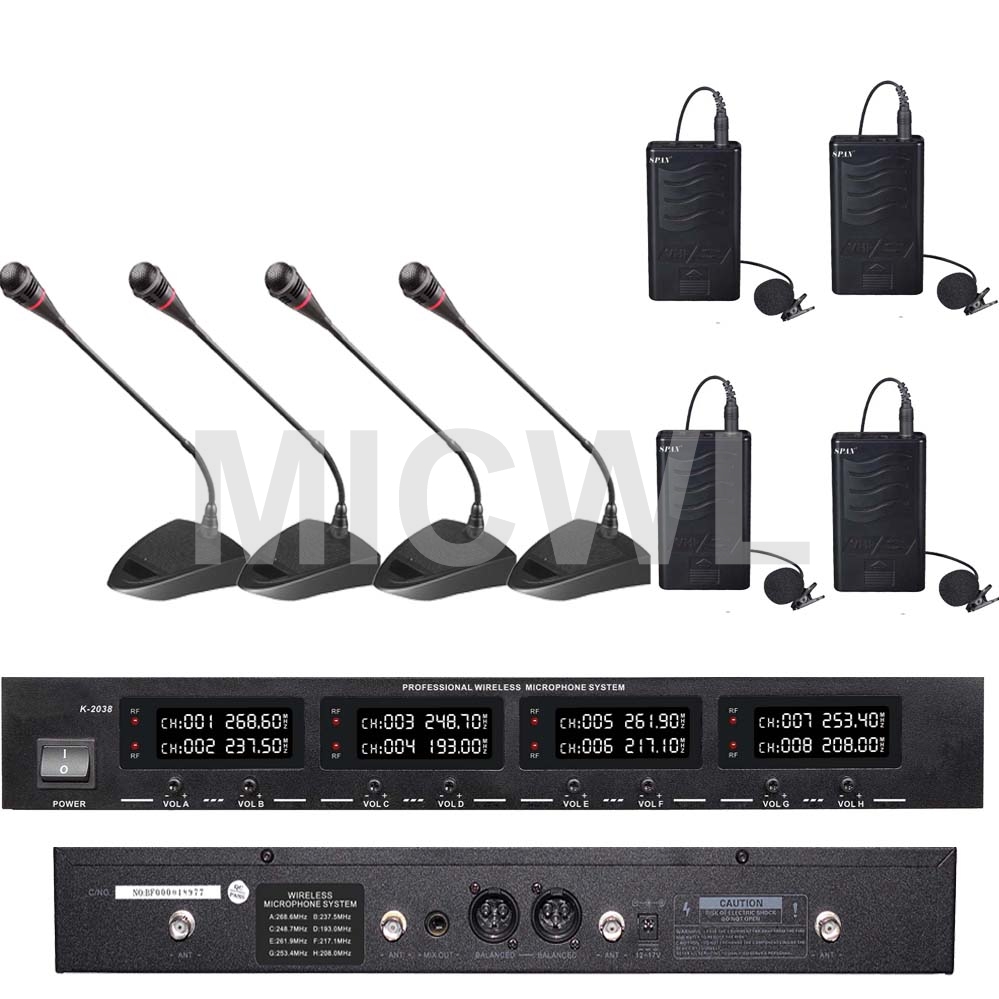

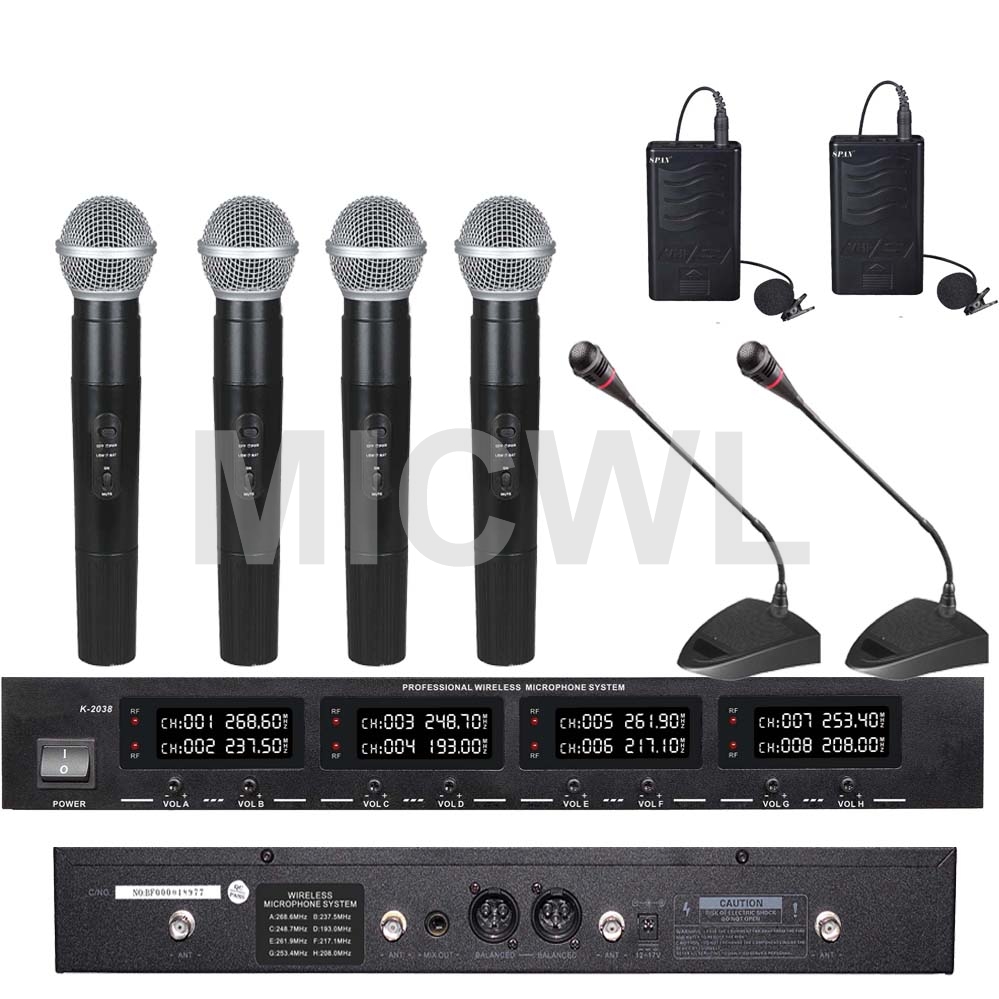

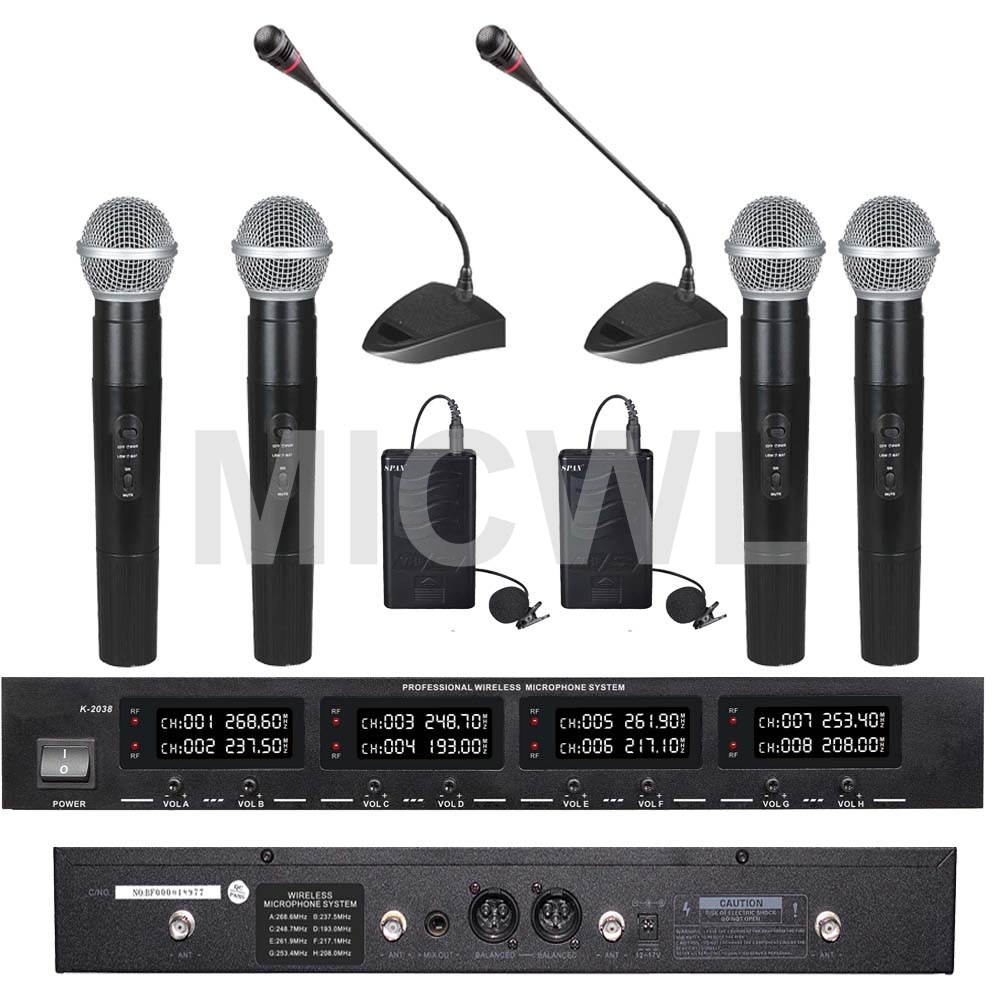

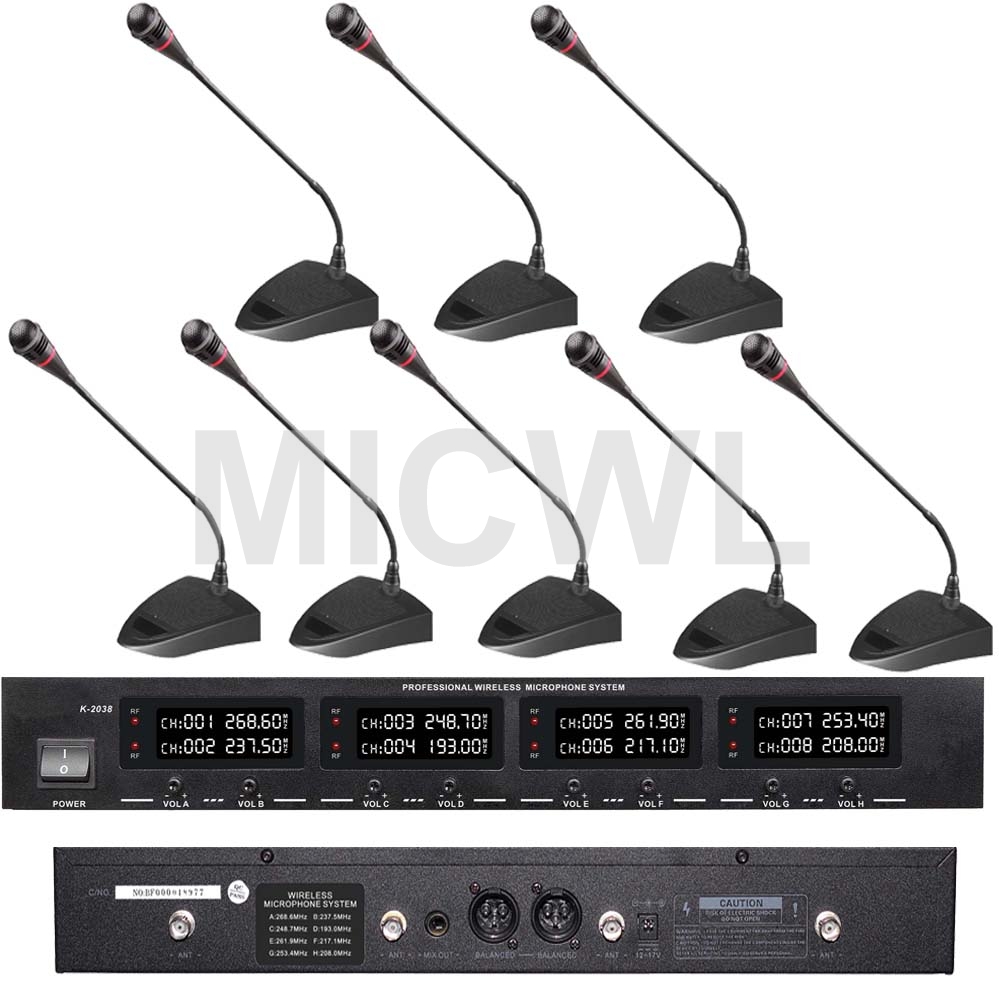

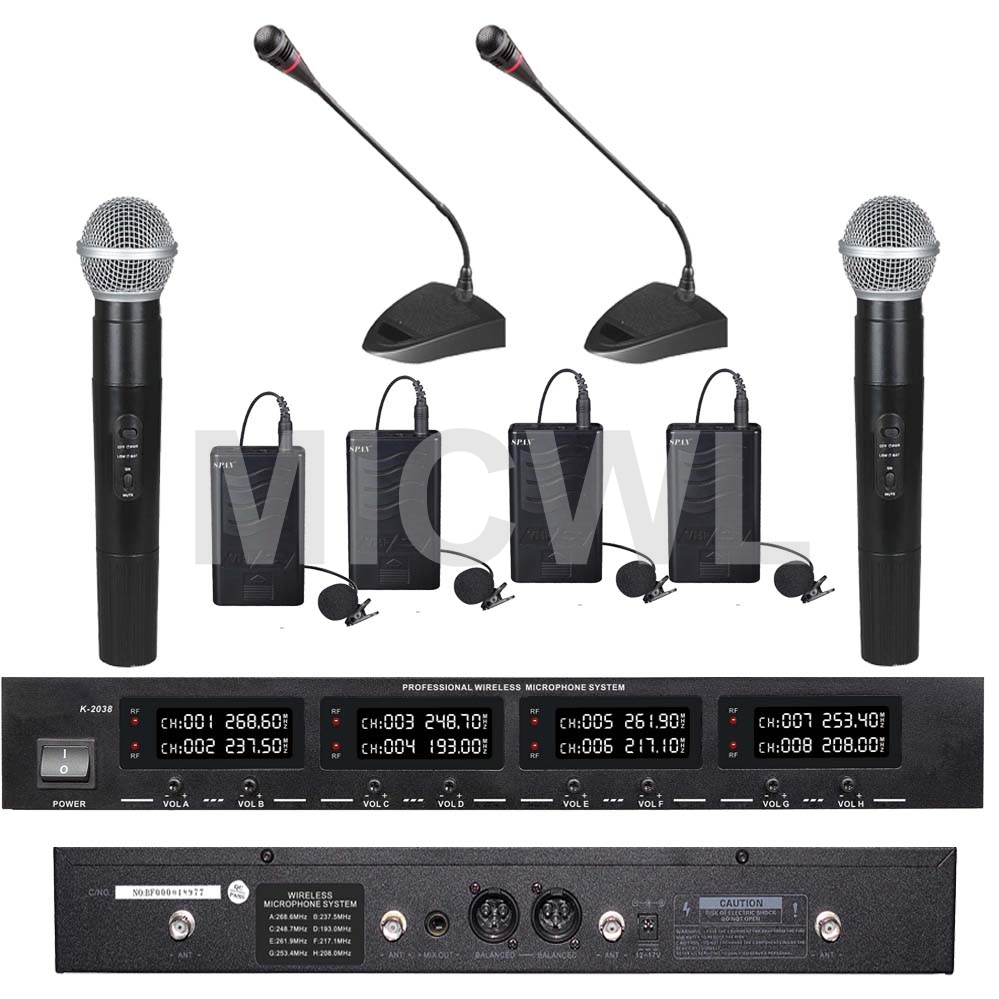

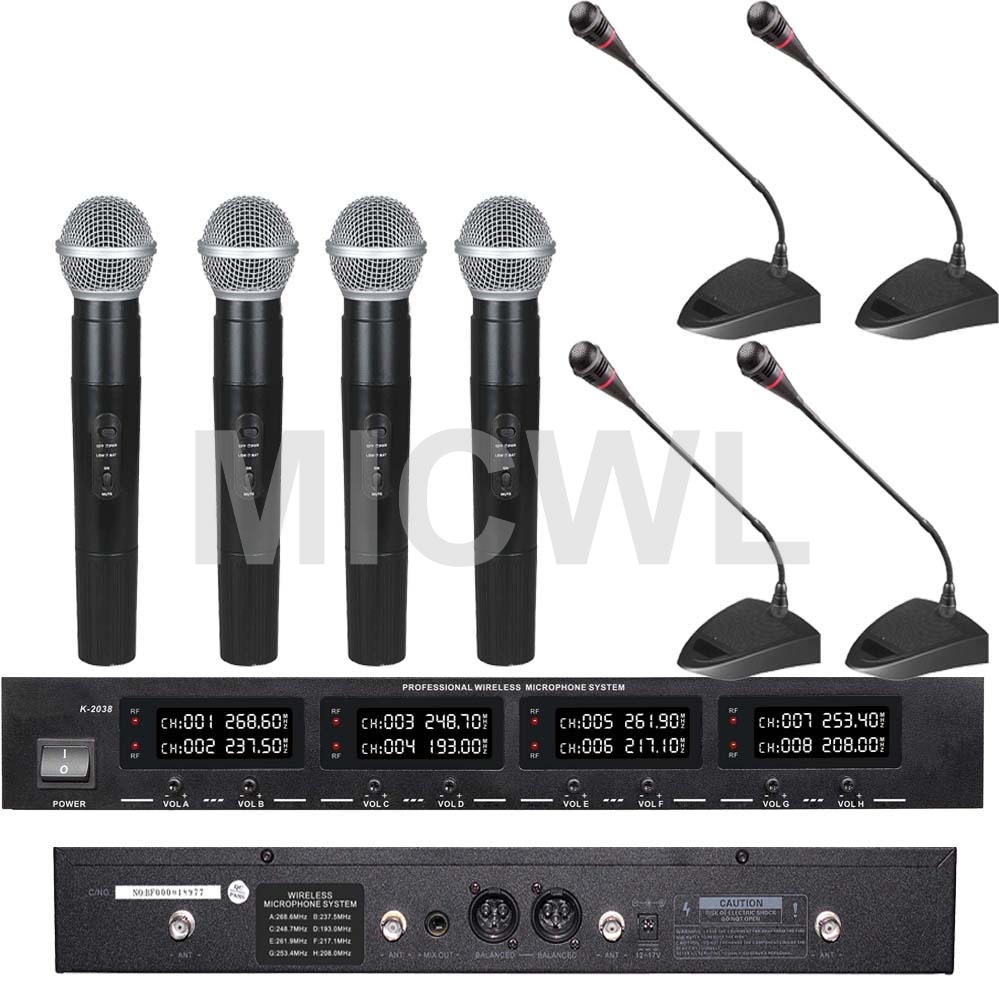

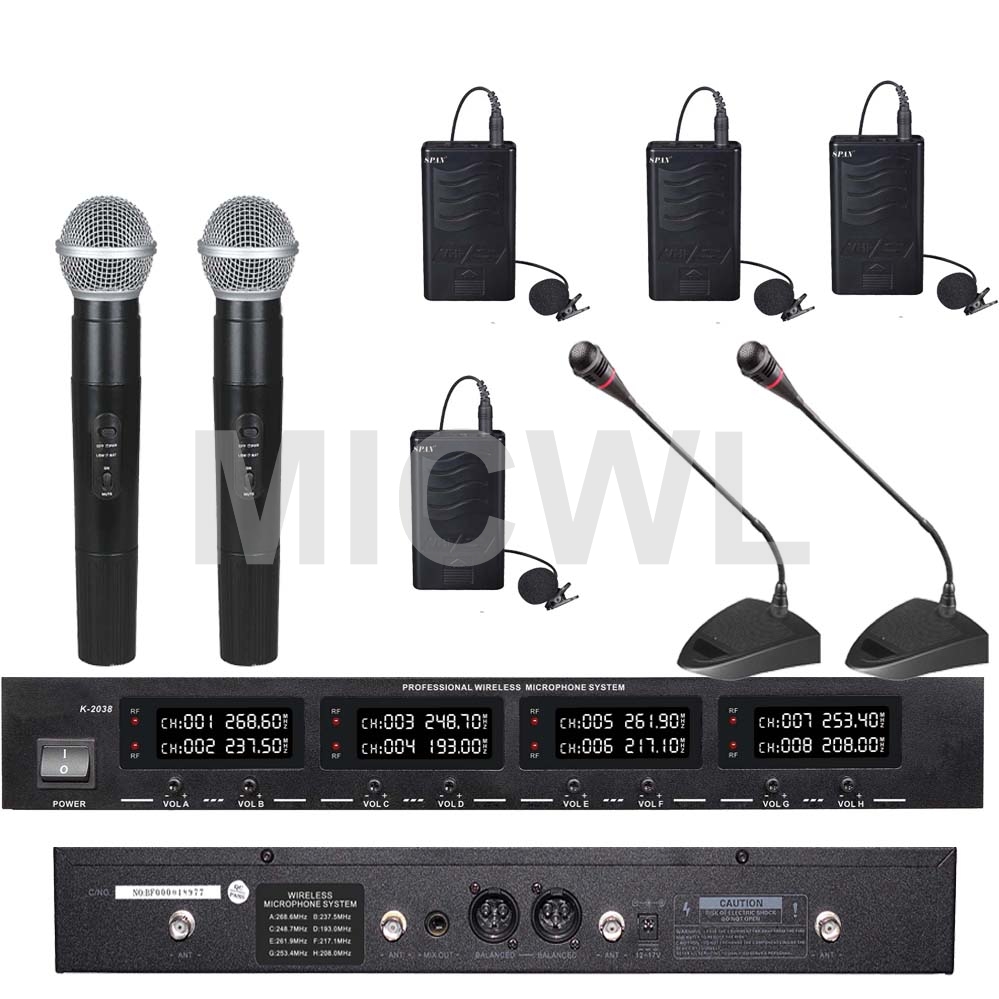

MICWL D2038 Wireless Conference / Handheld / Belptack with Headset Lavalier Microphone System Brand New MSRP: $1499.00
1. 8channel receive signal; 2. Oscillation mode: quartz crystal oscillation; 3.VHF/UHF band transmission signal, the actual frequency range: 190MHz-280MHz, or 800MHz-899MHz for Choice. fixed frequency per channel; 4. You can use 16 frequency points at the same time, that is, the same occasion can use 16 microphones; 5. Receiver backlight display indicates the working channel, operating frequency, each display shows the working status of the two channels; front are equipped with RF signal indicator and AF audio indicator; 6. The back of the receiver set up four rod receiving antenna to enhance the received signal; 7. Set up two balanced outputs and one mixed unbalanced output, suitable for connecting various external devices; 8. Microphone power consumption of 60mA, the use of 1.5V battery (2) power supply, can be used continuously for 8 hours; 9. The microphone is equipped with a red light ring to indicate the operation of the conference microphone; 10. Use distance: open environment: 80-150 meters complex environment: 50-100 meters 11. Applicable to various meetings and speeches. Receiver parameter Oscillation: quartz crystal (quartz crystal) Frequency range (Carrier Ferquency Range): 190MHz-280MHz, or 800MHz-899MHz for Choice. 190MHz-280MHz, or 800MHz-899MHz for Choice Frequency stability: ± 0.001% Modulation Mode: FM Signal to noise ratio (S / N Ratio):> 60dB Distortion (T.H.D): <0.5% @ 1KHz Sensitivity: 1.2 / UV @ S / N = 12dB Power supply (Power Supply): DC: 12V ~ 17V Audio output: Free standing 0 ~ 400MV Mixed style 0 ~ 300mV
Shoot machine parameter Power supply: Table DC 3V (1.5VAA * 2)/ Handheld DC 9V/ Lavalier DC 9V Consume an electricity quantity: 60mA Carry a frequency: 190MHz-280MHz, or 800MHz-899MHz for Choice. Frequency stability: ± 0.001% Max.eviation Range: ± 25KHz Signal to noise ratio (S / N Ratio):> 60dB The interference frequency ratio (F / N Ratio):> 80dB Dynamic range: ≥100dB Type (Type): capacitance (capacitance) Polarity mode (polar psttern): a single point of direction (One direction) Frequency response (Frequency Resonse): 40Hz ~ 20KHz Sensitivity: - 45 ± 2dB @ 1KHz
