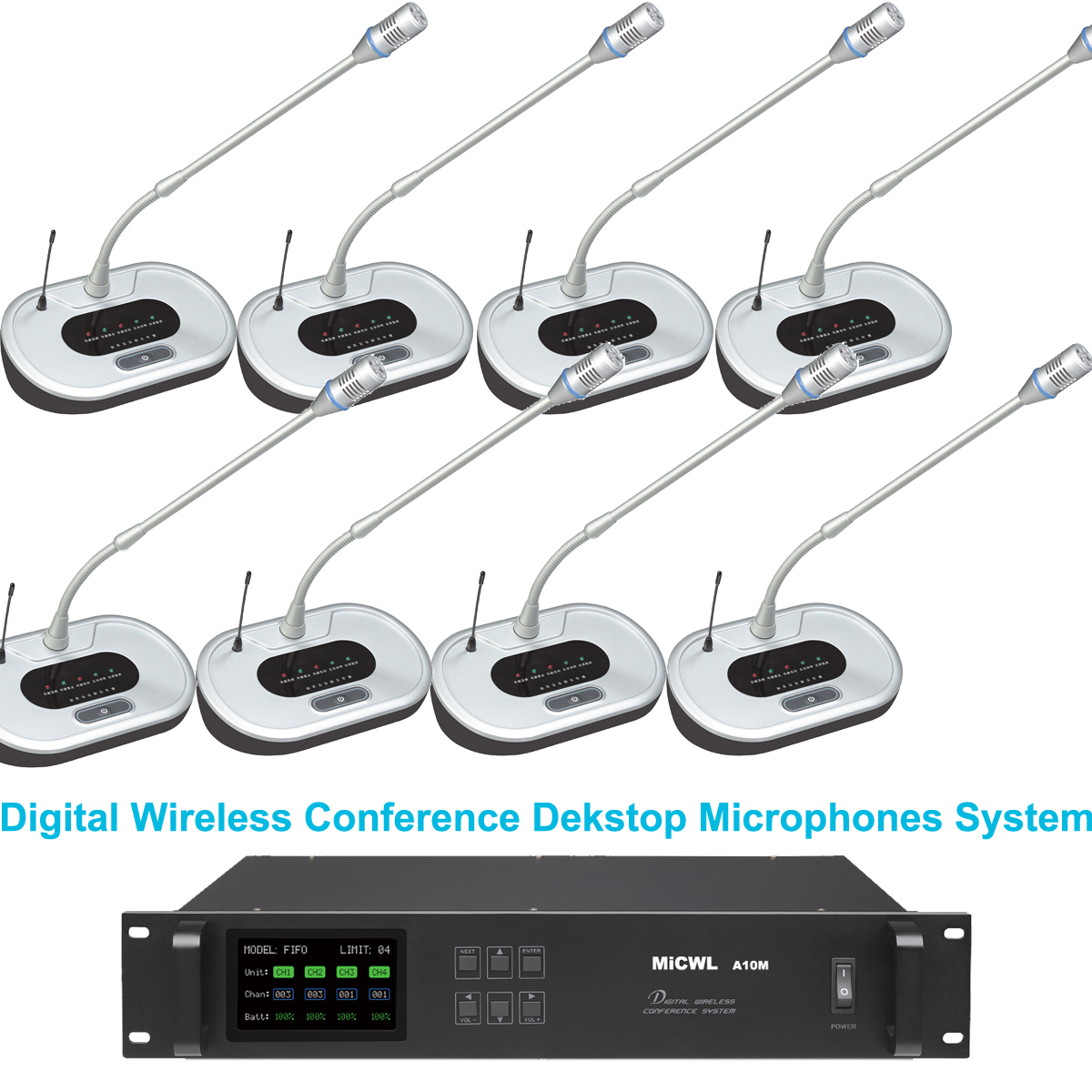

MiCWL A10M Wireless Host Unit Description:
· Products using digital radio processing audio signals and control signals, without the cumbersome wires;
· Scientific IP and ID code design, ID: 001-008, IP: 001-160;
· Unlimited number of units can be placed anywhere in the loop;
· CPU multi-stage error correction and encryption scrambling. Prevent cross-channel interference and anti-cell phone
electromagnetic interference;
· FIFO and having restrictions on speech, the President dedicated three kinds of speech patterns, while the number of speakers 1-4
persons Optional;
A host large screen (240X128) dot matrix LCD display work content. Hierarchical menu design, with volume control, speech patterns,
the number of speakers, using the channel, EQ functions, communication and IP communication ID adjustment function, real-time
display the number of speakers, the order of the channel, the channel position and power unit data;
· Chairman priority control function, limited by limiting function, can cut the representative;
Use distance: 100-120 meters, communication distance: 120-200 meters;
· 2U chassis design, can be installed in 19 inches
Power supply:DC 12V-17V
Sensitivity: -105dBm
S/N Ratio:>90dB
T.H.D:<0.05%Db
Max.deviation range:±45KHz
Working distance: about 100meter
Power:6.5W
Size:480*370*85mm
Weight:5KG
A100 Model: Wireless Chairman unit and Delegate unit Table Mic:
* Anti-electromagnetic, mobile phone interference function;
· LED Tip speech patterns, working conditions, low pressure indication and control buttons, etc. Chairman of the content
information;
· Chairman unit has the priority function, limited by limiting function, can cut the representative;
· Gooseneck microphone pole design, the microphone has a light ring indicates power-on state;
· External transmitting antenna, the signal all directions, which do not appear out of control within the effective range;
Power supply:DC4.5V (1.5V AA*3) battery
Emission power:10mW
Maximum frequency deviation:±45KHz
Pickup head:condenser,single direction
Sensitivity:-45±2dB@1KHz
Frequency response:20Hz-18KHz
Power consumption:130mA
Size: 190*125*63mm
Weight: 850g
