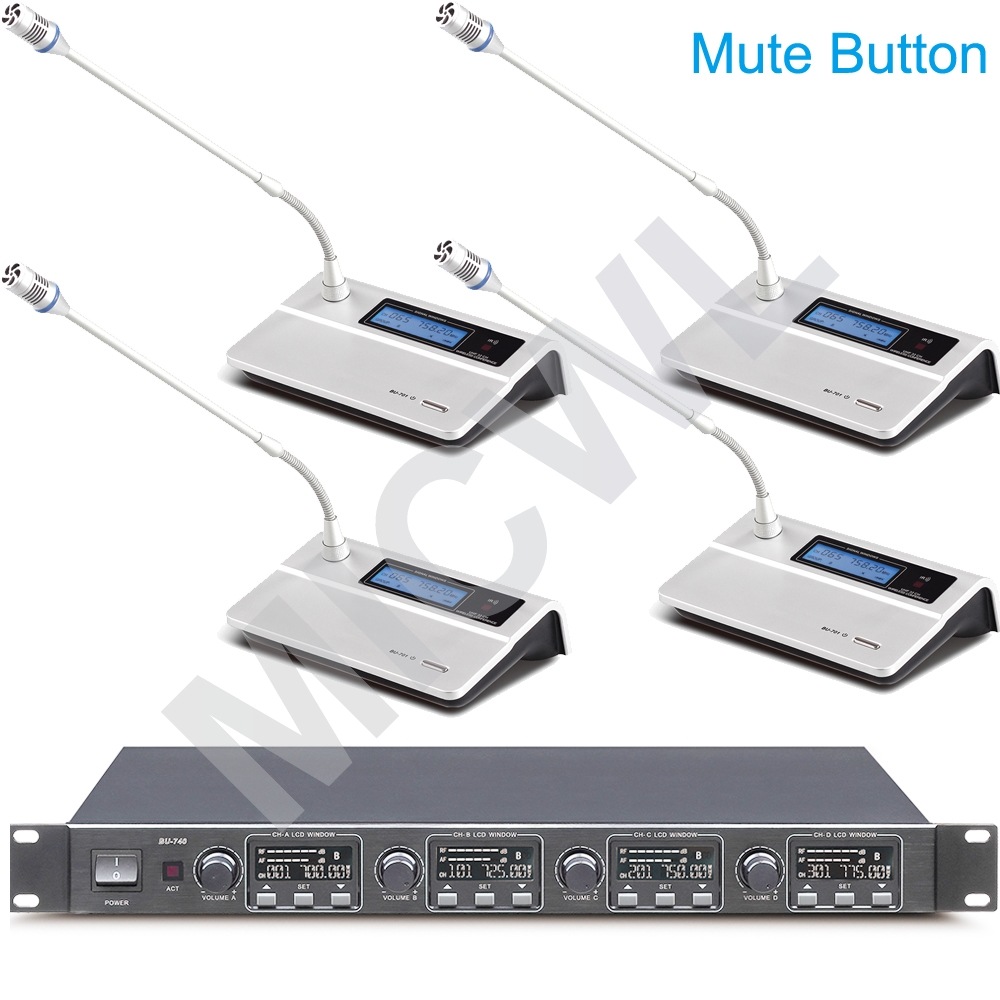

1. UHF 4 channels to receive signals, each channel has 100 channels available, each channel steps at 250KHz; each channel uses 24.75MHz; 2. Using a stable PLL digital phase-locked loop synthesis technology and chip lines, the overall performance stability significantly improved; 3. UHF band transmission signal, frequency range: 500MHz-900MHz; 4. On the same occasion, 20 sets of machines can be used at the same time, and 20 receivers and 80 transmitters can be used at the same time; 5. LCD screen display working channel, working frequency, received signal, audio signal 6. The rear of the receiver is provided with 4 rubber receiving antennas to enhance the received signal, and the appearance is generous; 7. On the back there are 4 independent SQ potentiometers, 4 balanced outputs and 1 hybrid unbalanced output, suitable for connecting various external devices; 8. No longer limited to a single channel can only be paired to achieve the same transmission can be interoperated in 400 channels in two channels, full of high-tech human design; 9. Unique patented appearance microphone tube design, strong pick up distance, high fidelity unidirectional condenser core, sound reduction, high definition, low noise; 10. The microphone power consumption is 80mA, and it is powered by 1.5V battery (3 capsules). It can be used continuously for 12 hours. 11. The microphone head is equipped with a blue light ring to indicate the work status of the conference microphone tube (the light ring shows blue light during work); 12. Usage distance: Empty environment: 80-100 meters Complex environment: 50-80 meters 13. Applicable to various conferences and lectures.
Receiver Host parameter:
Oscillation: (PLL syntheized) Frequency range (Carrier Ferquency Range): 600MHz-699Mhz, or 700-799MHz ;800-899MHz for you choice. Frequency stability: ± 0.001% Modulation Mode: FM Signal to noise ratio (S / N Ratio):> 60dB Distortion (T.H.D): <0.5% @ 1KHz Sensitivity: 1.2 / UV @ S / N = 12dB Power supply (Power Supply): DC: 12V ~ 17V Audio Output: Free standing 0 ~ 400mV Mixed (Mixed style) 0 ~ 300mV
Desktop Gooseneck Host: Power supply: DC 4.5V (1.5V AA * 4) Consume an electricity quantity: 100mA Carrier frequency (Carry a frequency): 600MHz-699Mhz, or 700-799MHz ;800-899MHz for you choice. Frequency stability: ± 0.001% Max.eviation Range: ± 30KH Signal to noise ratio (S / N Ratio):> 60dB The interference frequency ratio (F / N Ratio):> 80dB Dynamic range: ≥100dB Type (Type): capacitance (capacitance) Polarity mode (polar psttern): a single point of direction (One direction) Frequency response (Frequency Resonse): 40Hz ~ 20KHz Sensitivity: - 43 ± 3dB @ 1KHz
Warranty：
One Year Warranty Covered by MICWL Audio Inc.
We also provide Handheld, Beltpack with Instrument , Headset or Lavalier Microphone, or Conference for Choice. Please visit ourcompany website or contact us.
