1.UHF band transmission signal, the frequency range:600MHz-699Mhz, or 700-799MHz ; 2. Eight channel to receive the signal, each channel has 50 channels optional, each channel to 250KHz step; each channel with 12.25MHz; 3. The use of stable PLL digital phase-locked loop synthesis technology and intelligent digital lines, machine performance significantly improved performance; 4. Each channel is equipped with a unique ID number, enhanced anti-jamming function, support 10 stacker use (ie 10 receivers and 80 transmitters); 5. Built-in efficient suppression of noise lines, anti-whistle function significantly; 6. Receiver on the back of the two sets of rubber to receive the antenna to enhance the received signal, the appearance of decent; 7. The back with two balanced output and a mixed unbalanced output, suitable for connecting a variety of external devices; 8. no longer limited to a launch can only match a single channel, to achieve the same launch in the two channels of 400 channels interoperability, filling the human high-tech design; 9. Ultra-quiet touch switch, press the 0.5S open to enter the working state; 10. Flexible gooseneck microphone design, can be 360 ° omnidirectional adjustment, microphone ring light ring to speak state. 11. Microphone power consumption of 80mA, the use of 1.5V battery (3) power supply, can be used continuously for 12 hours; 12. Host and transmitter are equipped with LCD screen display working status and so on 13. Use distance: open environment: 80-100 meters complex environment: 50-80 meters 14. Applicable to various meetings and speeches.

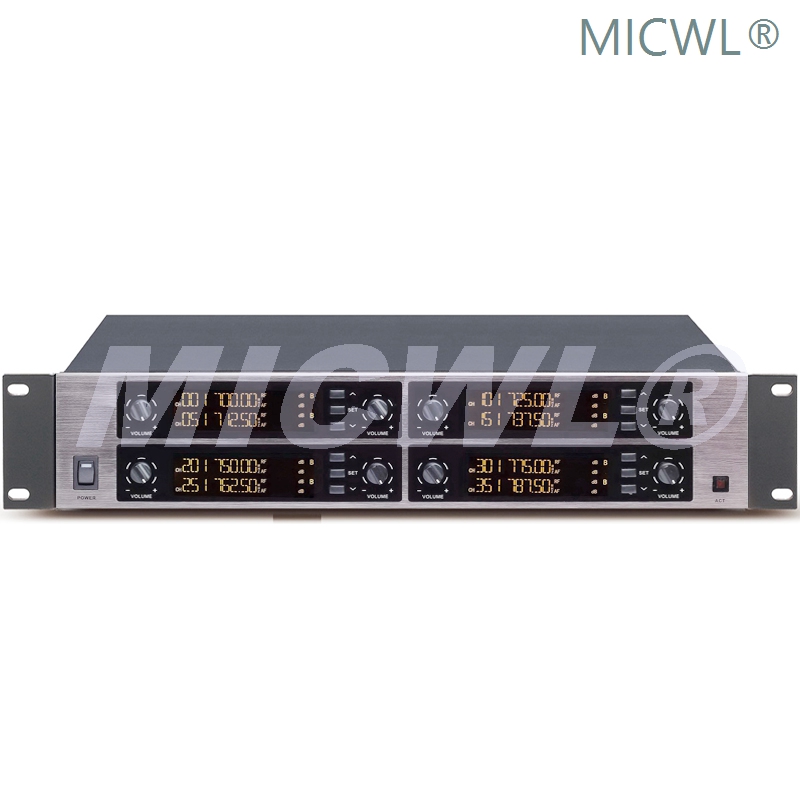

Receiver Host parameter:
Oscillation: (PLL syntheized) Frequency range (Carrier Ferquency Range): 600MHz-699Mhz, or 700-799MHz ; Frequency stability: ± 0.001% Modulation Mode: FM Signal to noise ratio (S / N Ratio):> 60dB Distortion (T.H.D): <0.5% @ 1KHz Sensitivity: 1.2 / UV @ S / N = 12dB Power supply (Power Supply): DC: 12V ~ 17V Audio Output: Free standing 0 ~ 400mV Mixed (Mixed style) 0 ~ 300mV

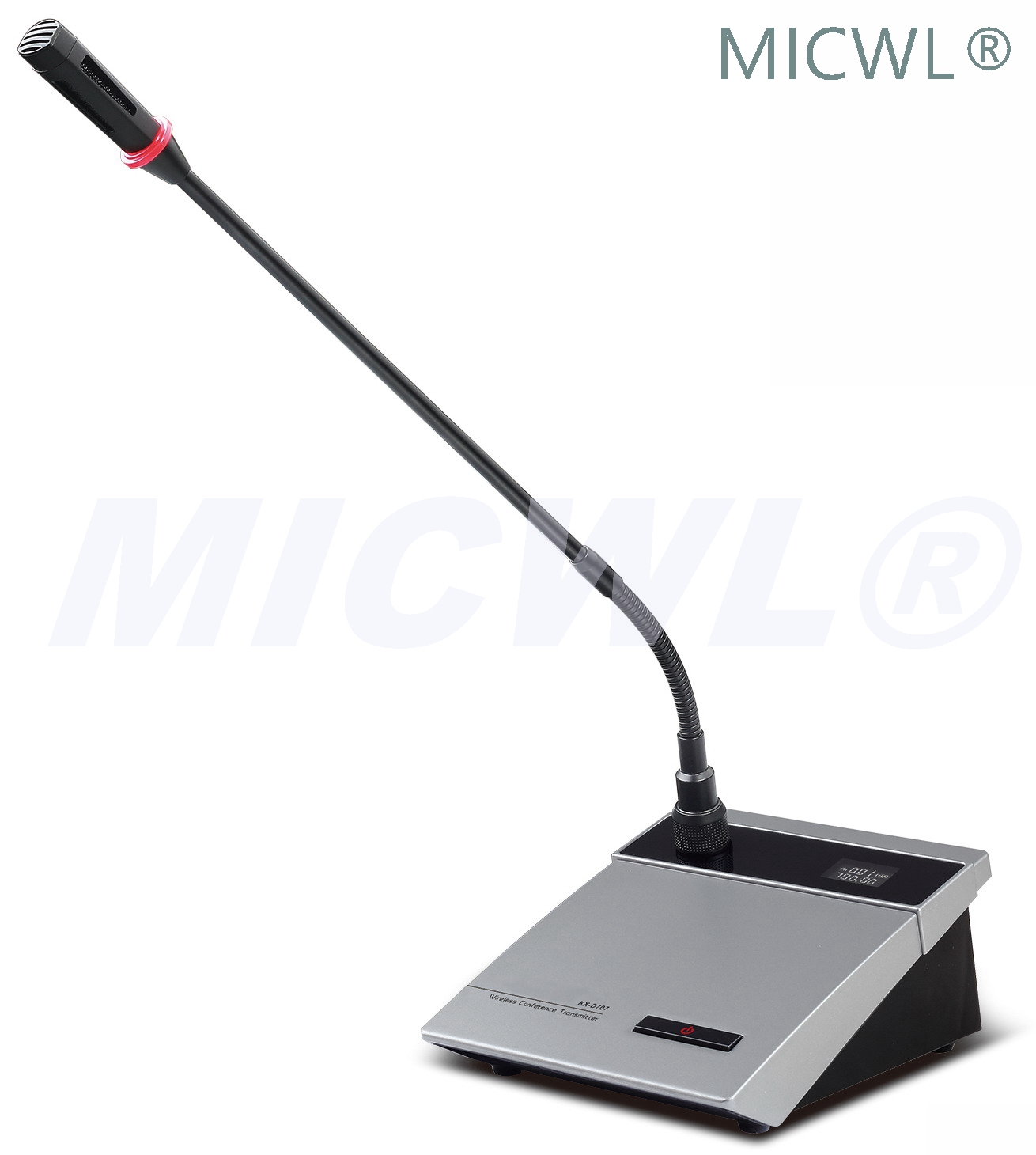

Desktop Gooseneck Host:
Power supply: DC 4.5V (1.5V AA * 3) Consume an electricity quantity: 100mA Carrier frequency (Carry a frequency): UHF 500MHz ~ 900MHz Frequency stability: ± 0.001% Max.eviation Range: ± 30KH Signal to noise ratio (S / N Ratio):> 60dB The interference frequency ratio (F / N Ratio):> 80dB Dynamic range: ≥100dB Type (Type): capacitance (capacitance) Polarity mode (polar psttern): a single point of direction (One direction) Frequency response (Frequency Resonse): 40Hz ~ 20KHz Sensitivity: - 43 ± 3dB @ 1KHz
Warranty：
One Year Warranty Covered by MICWL Audio Inc.
We also provide Handheld, Beltpack with Instrument , Headset or Lavalier Microphone, or Conference for Choice. Please visit our company website or contact us.
