Product Description

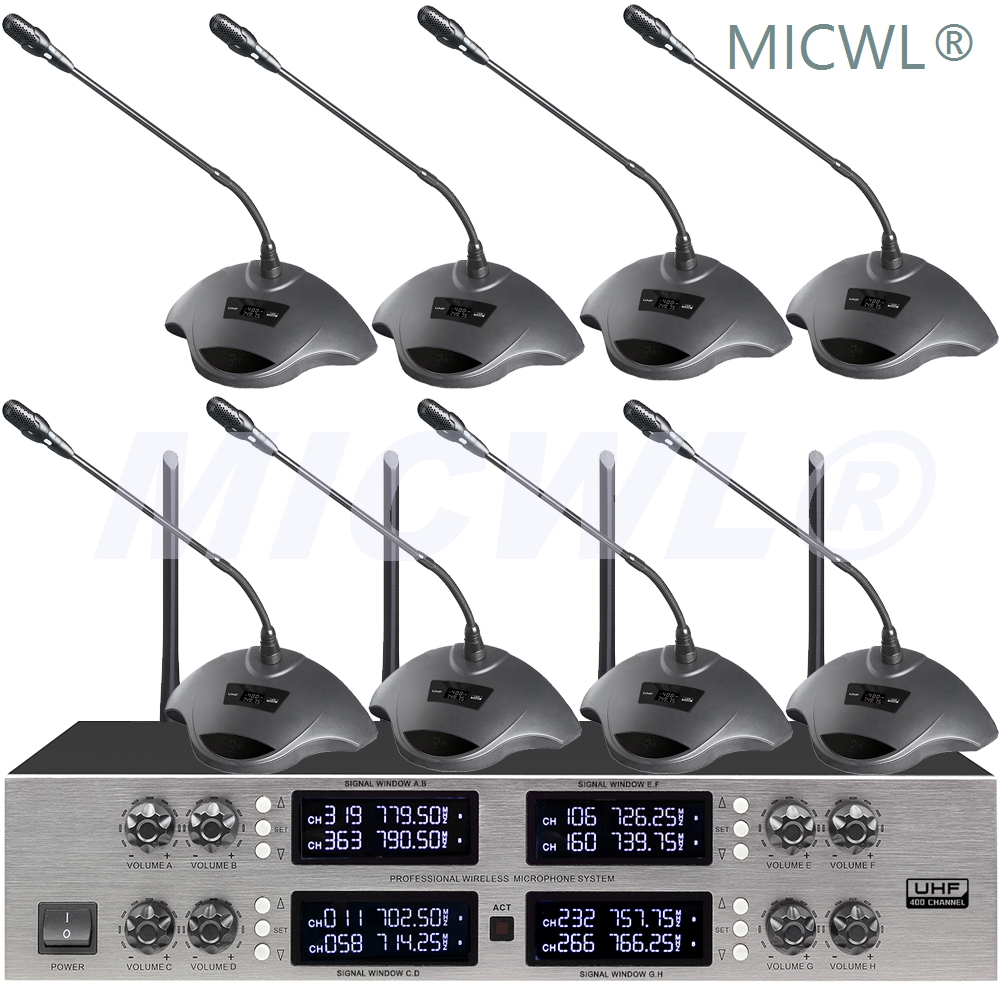

World Class - MICWL KD3818 8x50 Channel 400 frequency adjustable
UHF Digital Wireless Microphones System

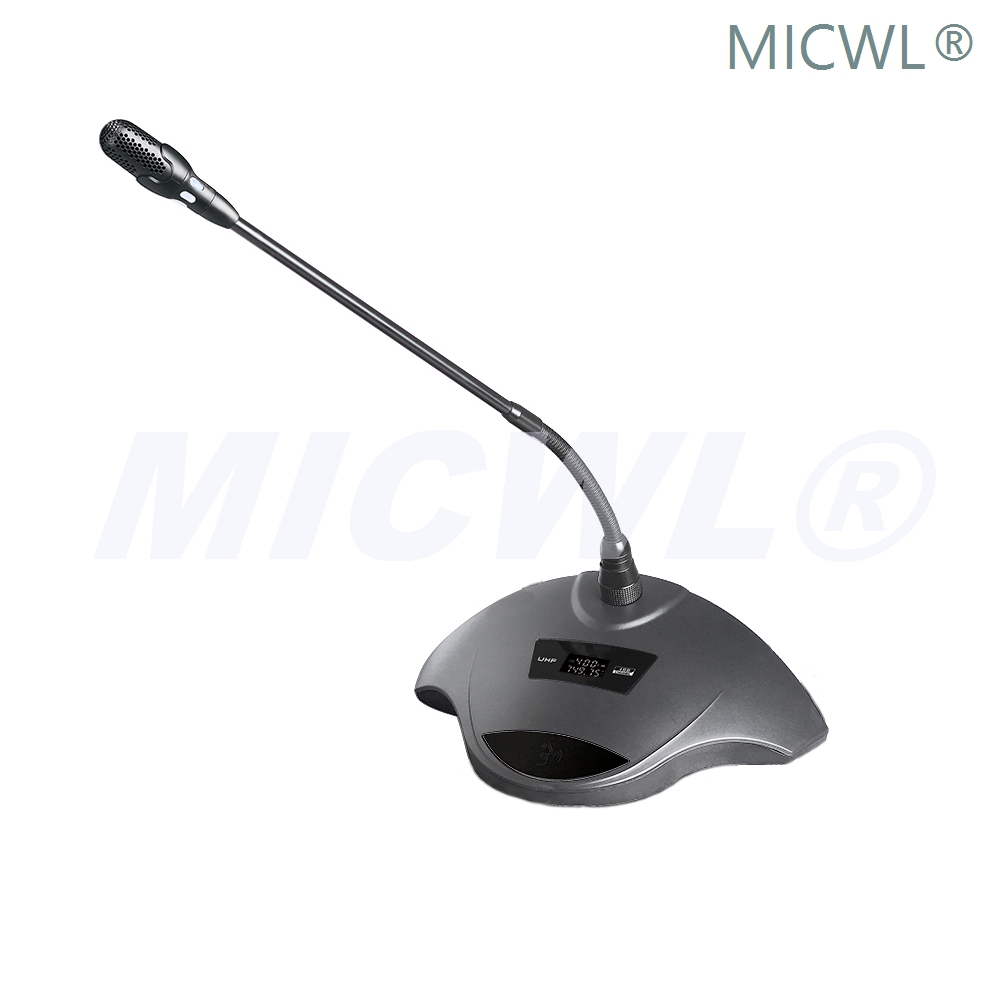

8 Table Gooseneck Microphone
Brand New
MSRP: $3499.00
8 XLR respective , 1 XLR and 1 6.5mm Main OUT
The MICWL is a wireless microphone systems supporting up to 8 Microphone 400 frequency adjustable (8x50 Channel) . It’s equipped with 1/4" individual and mixed line outputs, so you can simplify the mixing process, or use your own mixer -- it's up to you. The wireless receiver is rack-mountable for easy integration into your rig. Four telescoping antennas ensure quality wireless transmission, and on/off broadcasting switches allow you to easily manage all your wireless mics.
Package includes:

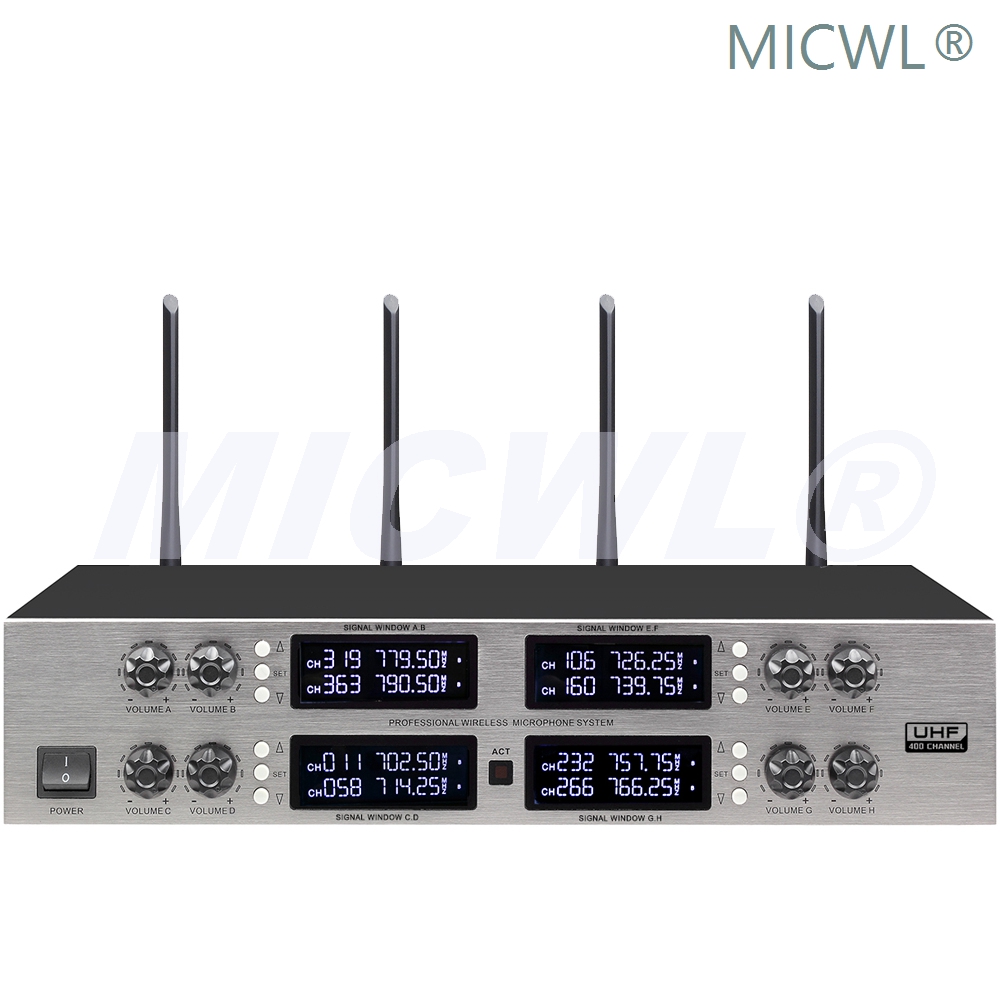

(1) 8 Channel 4 LED Receiver ,
(2) 8 Conference microphones
(3) 8 Conference Base.
(4) 8 foam
(5) 1x 1/4" plug Audio Cable
(6) AC-DC adapter ( 110V or 240V universal )
(7) Batteries and manual.
1.UHF band transmission signal, the frequency range: UHF 600MHz-690MHz; or 700MHz-790MHz; or 800MHz-890MHz; ( Comply with CE and FCC frequency rules)
2. Eight-channel receive signal, each channel has 50 channels optional, each channel to 250KHz step; each channel with 12.25MHz;
3. The use of stable PLL digital phase-locked loop synthesis technology and intelligent digital lines, machine performance stability significantly improved;
4. Each channel is equipped with a unique ID number, enhanced anti-jamming function, support 10 stacked machine use (means 10 receivers and 80 transmitters can working at the same time);
5. Built-in high-efficient suppression of noise lines, anti-whistle function significantly; pickup distance of 30-50CM;
6. Receiver set the back of the two rubber receiving antenna to enhance the received signal, the appearance of generous decent;
7. On the back with two balanced output and a mixed non-balanced output, suitable for connecting a variety of external devices;
8.400 channels in the interoperability, full of human nature of the high-tech design;
9. Flexible gooseneck microphone design, 360 ° all-round adjustment, microphone light ring instructions to speak the state.
10. Microphone power consumption of 80mA, the use of 1.5V battery (2) power supply, can be used continuously for 12 hours;
11. Both the host and the transmitter are equipped with LCD screen to display the working status and so on
12. Use of distance: open environment: 150-200 m Complex environment: 80-120 meters
13. Applicable to all kinds of meetings and lectures.
Receiver parameter:
Oscillation: : (PLL syntheized)
Carrier Ferquency Range: UHF 600MHz-690MHz; or 700MHz-790MHz; or 800MHz-890MHz; ( Comply with CE and FCC frequency rules)
8 Channel x 50 frequency for your choice.
Frequency Stability:±0.001%
Max.eviation Range:±50KHz
Modulation Mode:FM
S/N Ratio:>105dB
T.H.D:<0.5%@1KHz
Sensitivity:1.2/UV @S/N=12dB
Power Supply:DC:12V~17V
Audio Output:(Free standing )0~400mV (Mixed style )0~300mV
Shoot machine parameter:
Power Supply:DC 3V (1.5V AA*2)
Consume an electricity quantity:100mA
Carrier Ferquency Range: UHF 600MHz-690MHz; or 700MHz-790MHz; or 800MHz-890MHz; (( ( Comply with CE and FCC frequency rules)
8 Channel x 50 frequency for your choice.
Frequency stability:±25KHz
S/N Ratio:>105dB
F/N Ratio:>80dB
Dynamic range:≥100dB
Type):(capacitance)
polar psttern:(One direction)
Frequency Resonse):40Hz~20KHz
Sensitivity:-47±3dB@1KHz
Can Provide 8 Table meeting / 8 Handheld / 8 Bodypack with Heaset or Lavalier / 4 Table Mic 4 Handheld etc. Please contact us if you need more option
