1. Pro Wireless Transmission signal, the frequency range: 190MHz-280MHz;
2. Eight-channel receive signal, fixed-frequency, A better sound quality and anti-jamming
3. The use of stable PLL digital phase-locked loop synthesis technology and intelligent digital lines, machine performance stability significantly improved;
4. Each channel is equipped with a unique ID number, enhanced anti-jamming function, support 2 stacked machine use (means 2 receivers and 16 transmitters can working at the same time);
5. Built-in high-efficient suppression of noise lines, anti-whistle function significantly; pickup distance of 30-50CM;
6. Receiver set the back of the two rubber receiving antenna to enhance the received signal, the appearance of generous decent;
7. On the back with two balanced output and a mixed non-balanced output, suitable for connecting a variety of external devices;
8. Flexible gooseneck microphone design, 360 ° all-round adjustment, microphone light ring instructions to speak the state.
9. Microphone power consumption of 80mA, the use of 9V battery power supply, can be used continuously for 12 hours;

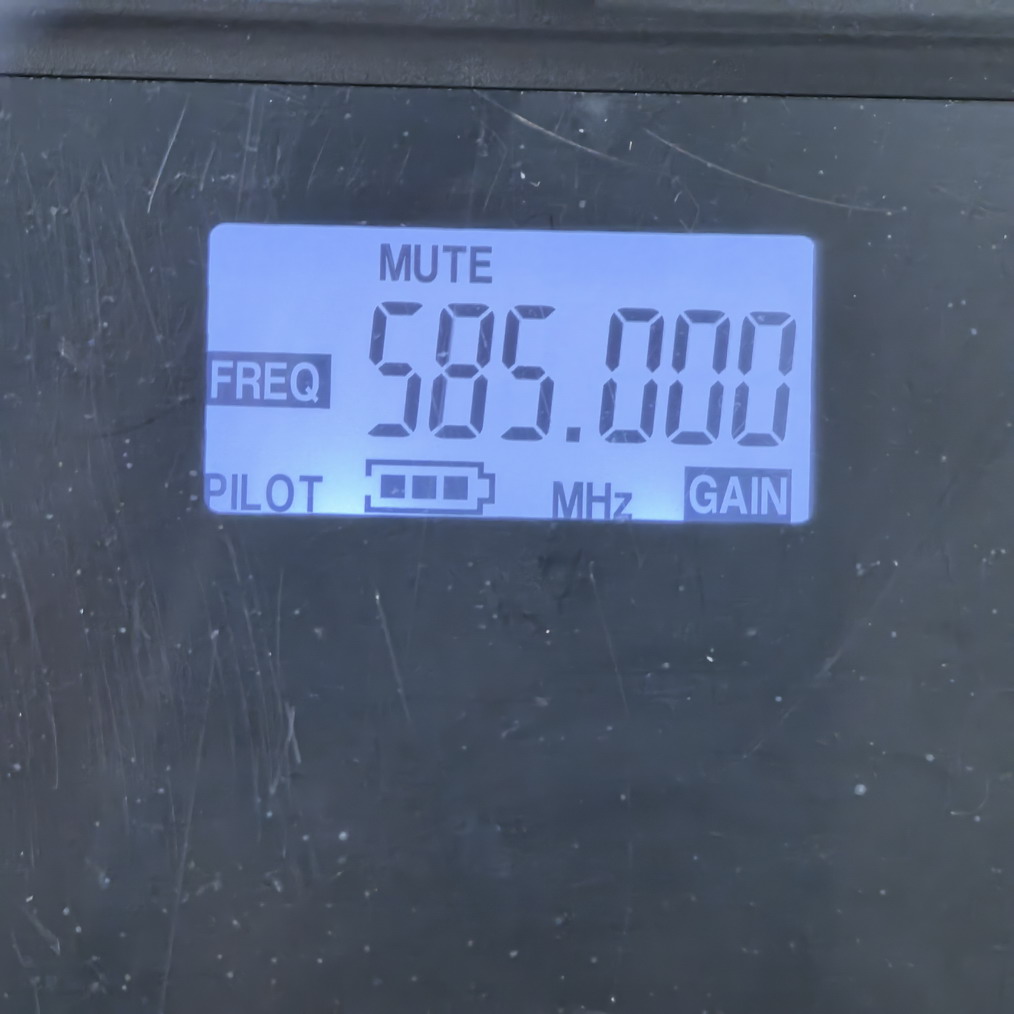

10. Both the host and the transmitter are equipped with LCD screen to display the working status and so on
11. Use of distance: open environment: 100-150 m Complex environment: 50-100 meters
12. Applicable to all kinds of meetings and lectures.
Host Unit description:
(Oscillation: ): (PLL syntheized)
(Carrier Ferquency Range):VHF190MHz~280MHz
(Frequency Stability):±0.001%
(Max.eviation Range):±50KHz
(Modulation Mode):FM
(S/N Ratio):>105dB
(T.H.D):<0.5%@1KHz
(Sensitivity):1.2/UV @S/N=12dB
(Power Supply):DC:12V~17V
(Audio Output):(Free standing )0~400mV (Mixed style )0~300mV
Table Conference / Handheld / Beltpack with Lavalier Transmitter Unit description:
(Power Supply): DC 9V
(Consume an electricity quantity):100mA
(Carry a frequency): VHF190MHz~280MHz
(Frequency stability):±25KHz
(S/N Ratio):>105dB
(F/N Ratio):>80dB
(Dynamic range):≥100dB
(Type):(capacitance)
(polar psttern):(One direction)
(Frequency Resonse):40Hz~20KHz
(Sensitivity):-47±3dB@1KHz
